SLIDEKIT 2.0

Benefits

  • Increase the operating range of a cobot
  • Compatible with Universal Robot range UR3 to UR16
  • Enhanced version for UR20 and UR30
  • No hardware/software development needed
  • Direct positioning access within a UR controlled environment
  • Fast positioning to increase productivity and save costs
  • Compatible with VISUAL COMPONENT software

Features

  • UR+ certified horizontal positioning axis
  • Ready to use complete system solution
  • Software plugin (UR Caps) to UR control system included
  • High level of positioning precision and repeatability
  • Very low noise in operation
Several applications require to cover long distances to perform the operation, like finishing, welding and parts inspection. These repetitive tasks, usually done manually, are time consuming and with low added value for the operators.

By adding a linear module as a dynamic base for the robot, it is possible to extend the handling operating area of the robot, increasing the productivity and output quality. The SLIDEKIT 2.0 provides quick and fast installation, by having a standardized mechanical, electrical and software interface with Universal Robots. In few steps, the system is ready to be used and simply programmed in operation.

Moreover, SLIDEKIT is also available with a general purpose variant, using simple digital I/Os to control the motion, making it compatible with other cobots brands. Cobots combined with the SLIDEKIT 2.0 linear module provide a cost-effective solution to upgrade an existing assembly shop, moving from a manual handled to a fully automatized line. The 2.0 release of the SLIDEKIT delivers several improvements compared to the former version, like higher system reactivity and stability, lower noise in operation and optimized design for limit switches and re-lubrication points.

Case studies:

      SLIDEKIT-UR BE S00 SLIDEKIT-UR PE S00 SLIDEKIT-UR PE S20
      Robot compatibility UR3, UR5, UR10, UR16 UR3, UR5, UR10, UR16 UR20,UR30
      Dynamic payload (N) 10 900 10 900 16 000
      Max stroke (mm) 1 800 3 000 3 000
      Operating temperature 0 to +50 °C 0 to +50 °C 0 to +50 °C
      Drive Ball screws Belt drive Belt drive
      Mounting Floor mount
      Ceiling mount
      Wall mount (lateral)
      Floor mount
      Ceiling mount
      Floor mount
      Repeatability (mm) ± 0,01 ± 0,08 ± 0,08
      Max. linear speed (mm/s) 1 000 1 000 300
      Duty cycle (%) 100 100 100
      This product is a customised solution so 3D models are available only on request.
      Please contact us using <a href="/page-contacts">this form</a>
      IL-07023/10-EN-October 2024 Linear axis for collaborative robots SLIDEKIT

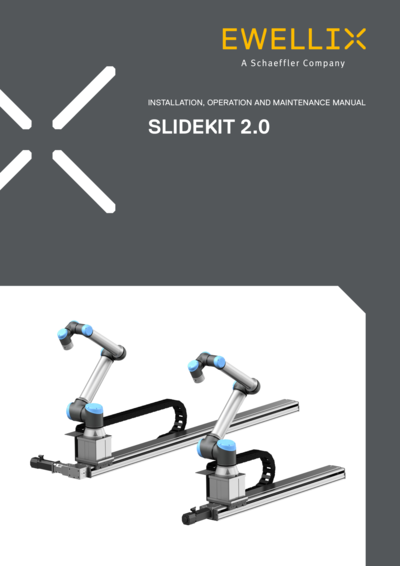

      TC-08036/9-EN-October 2024 - SLIDEKIT operating manual
      EL-03012/1-EN-September 2022 Linear technology for flexible assembly lines
      EL-03018/1-EN -February 2023 7th axis solutions to boost your robot s capabilities
      EL-03023-EN-November 2023-Solution for food and beverage

      Liftkit and slidekit - extend your possibilities
