Automated guided vehicles are becoming a key feature in Industry 4.0 automated productions.
CAHB-20A, -20E/S, -21E/S, -22E/S
Benefits
- Higher productivity with fast and smooth movement
- Easy and quick integration into customer equipment also via CAN bus SAE J1939 communication
- Higher reliability and protection
- Cost effective and virtually maintenance-free
- Monitoring and onboard diagnostic
Features
- Absolute or incremental position feedback and limit switch (optional)
- Manual override (optional)
- Integrated overload and overheating protection
- Robust construction, protection class IP69K/66M, broad temperature range, corrosion resistant
- SmartX platform with integrated controller
Ewellix electromechanical CAHB 48v Linear actuators are engineered to operate in severe environments at temperatures from -40 to +85 °C with a maximum duty cycle of 25% and consist of robust metal gears with corrosion-resistant housings. All linear actuators are virtually maintenance-free, self-locking up to 2 times the rated load and up to IP69K/66M, covers medium and high loads for mobile applications. According to the versions additional design options are available like: limit switches, positioning feedback and manual override and the voltage is up to 48v: from 12 to 48v linear actuator. The smart CAHB-20S, CAHB-21S and CAHB-22S offer unique features at a competitive cost with integrated controller and advanced functions, while CAHB-30, CAHB-31 offer higher voltage: solutions as 115v linear actuator.
Technical Data
Overview
| CAHB-20A | CAHB-20E/S | CAHB-21E/S | CAHB-22E/S | |
|---|---|---|---|---|
| SmartX platform Integrated controller |
-- | |||
| Push/pull load | up to 2 500 N | up to 4 500 N | up to 4 500 N | up to 10 000 N |
| Ultimate push static load | up to 2 500 N | up to 10 000 N | up to 20 000 N | up to 20 000 N |
| Ultimate pull static load | 2 500 N | 20 000 N | 20 000 N | 20 000 N |
| Speed (full load) | up to 27 mm/s | up to 25,5 mm/s | up to 50 mm/s | up to 42 mm/s |
| Stroke | 102 to 610 mm | 50 to 700 mm | 50 to 700 mm | 50 to 700 mm |
| Voltage | 12 or 24 VDC | 12 or 24 or 48 VDC | 12 or 24 or 48 VDC | 12 or 24 or 48 VDC |
| Duty cycle (%) | 25 | 20 | 20 | 20 |
| Operating temperature | (-40)* - 25 to +85°C * for lower temperature please contact Ewellix |
(-40)* - 25 to +85°C * for lower temperature please contact Ewellix |
(-40)* - 25 to +85°C * for lower temperature please contact Ewellix |
(-40)* - 25 to +85°C * for lower temperature please contact Ewellix |
| Type of protection | IP 66 | IP 69K / 66M - with Gore automotive vent | IP 69K / 66M - with Gore automotive vent | IP 69K / 66M - with Gore automotive vent |
2D / 3D
Publications
IL-05002/8-EN-November 2024 Actuator range
IL-06022/3-EN-October 2023 CAHB series
TC-08004/2-EN-October 2021 CAHB2xE-S operating manual
EL-04013/1-EN-May 2023 Why Ewellix - CAHB
EL-04020-EN-August 2023 WHY Ewellix Actuators
EL-02006-EN-January 2023-Full electric transition
EL-03005/4-EN-February 2023 Aerodynamic booster actuator CAWD and CAHB series
EL-03009/3-EN-November 2023 Solution for mobile machinery
EL-03013-EN-July 2022 Solutions for Aerial Work Platform
EL-03014/1-EN-September 2022 Solutions for material handling
EL-03015/1-EN -October 2024 Solution for compact construction equipment
EL-03017-EN-November 2022-Solutions for agricultural machinery
EL-03018/1-EN -February 2023 7th axis solutions to boost your robot s capabilities
EL-03020-EN -May 2023-Solution for commercial and municipal vehicles
EL-03021-EN-June 2023 Building automation
Product selectors
Video
Request for quotation
Related applications
In order to optimise crop yield, combine harvesters must be able to regulate their mechanisms both accurately and eff
Round balers wrap individual hay bales with nets or twine that require a tensioning system with fast and precise posi
The cylinders of a self-propelled forage harvester must be open to grind the tool.
Farmers want the right amount of seed to be sown in each section of the field.
The grape harvester requires perfect adjustments to not damage or pollute the grape.
In order to improve the ergonomics of lawn mowers, certain functions are no longer performed manually.
Tractors are the most commonly used agricultural machine and therefore require the utmost attention when it comes to
Innovative and reliable solutions are required to keep productivity at a high level in forestry machines.
Innovative and reliable solutions are required to keep productivity at a high level in wheel loaders.
Innovative and reliable solutions are required to keep productivity at a high level in articulated dump trucks.
Lifting platforms are used in different locations, but on construction sites in our cities and in buildings they are
Aerial work platforms and access equipment are used in different locations, but on construction sites in our cities a
For safety reasons armoured vehicles must be equipped with heavy duty windows and doors.
Windrowers or swathers are agricultural implements that cut hay or small grains and forms them into windrows.
Innovative and reliable solutions are required to provide low operating costs and high productivity for wheeled rolle
Grain handling is controlled by gates and uses augers that should be foldable to fit on the trailer.
Feeding devices are remote controlled to supply feed via an adjustable spout.
An electric forklift actuator is a powered industrial truck used to lift and move materials over short distances for
Automatically controlled or autonomous vehicles that transport a wide range of products from crates to pallets are be
Autonomous electric machines are developed to work in the field for soil preparation, seeding, spraying or picking.
To improve the ergonomics of off-road vehicles with trailers, auxiliary functions are no longer performed manually.
In road construction employing paving or asphalting equipment, numerous settings are required to ensure perfectly lai
The sprayer attachment on tractor or robot needs to be compact when on the road as the ramps need to be a lifted and
Mini cranes require powered lifting and adjustment for indoor positioning function like for glass construction.

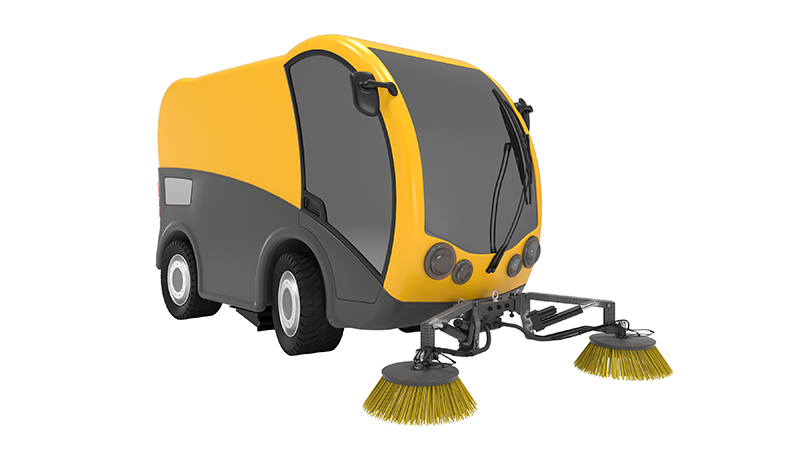

To maintain productivity and efficiency at a high level, sweepers, sprayers and suction nozzles must be correctly pos
