Miniature profile rail guides

Benefits

  • Long service life, virtually maintenance-free
  • Smooth running with low friction, best in class
  • Good availability and shorter time to market

Features

  • Factory pre-lubricated products with lube reservoir
  • Unique low friction low noise ball retention
  • Zero Rail Concept with interchangeable blocks on rails

Miniature profile rail guides are made for applications requiring compact, high running accuracy, long service life and low noise. Ewellix LLS systems offer extremely smooth running behaviour. The robust ball retention system avoids surprises during mounting. The products are ready to install while pre-lubricated with a lubrication reservoir for long service life. Rails and carriages (blocks) both have two reference sides for easy mounting. Please contact us for more information about our linear guide product range or profile guide rail!

Case studies:

      Range Standard and wide types from size 7-15
      Speed 5 m/s
      Acceleration up to 140 m/s2
      Length Rail length up to 2 m in one piece
      Accuracy up to 7 µm / 1 000 mm
      Operating temperature -20 to +80 °C

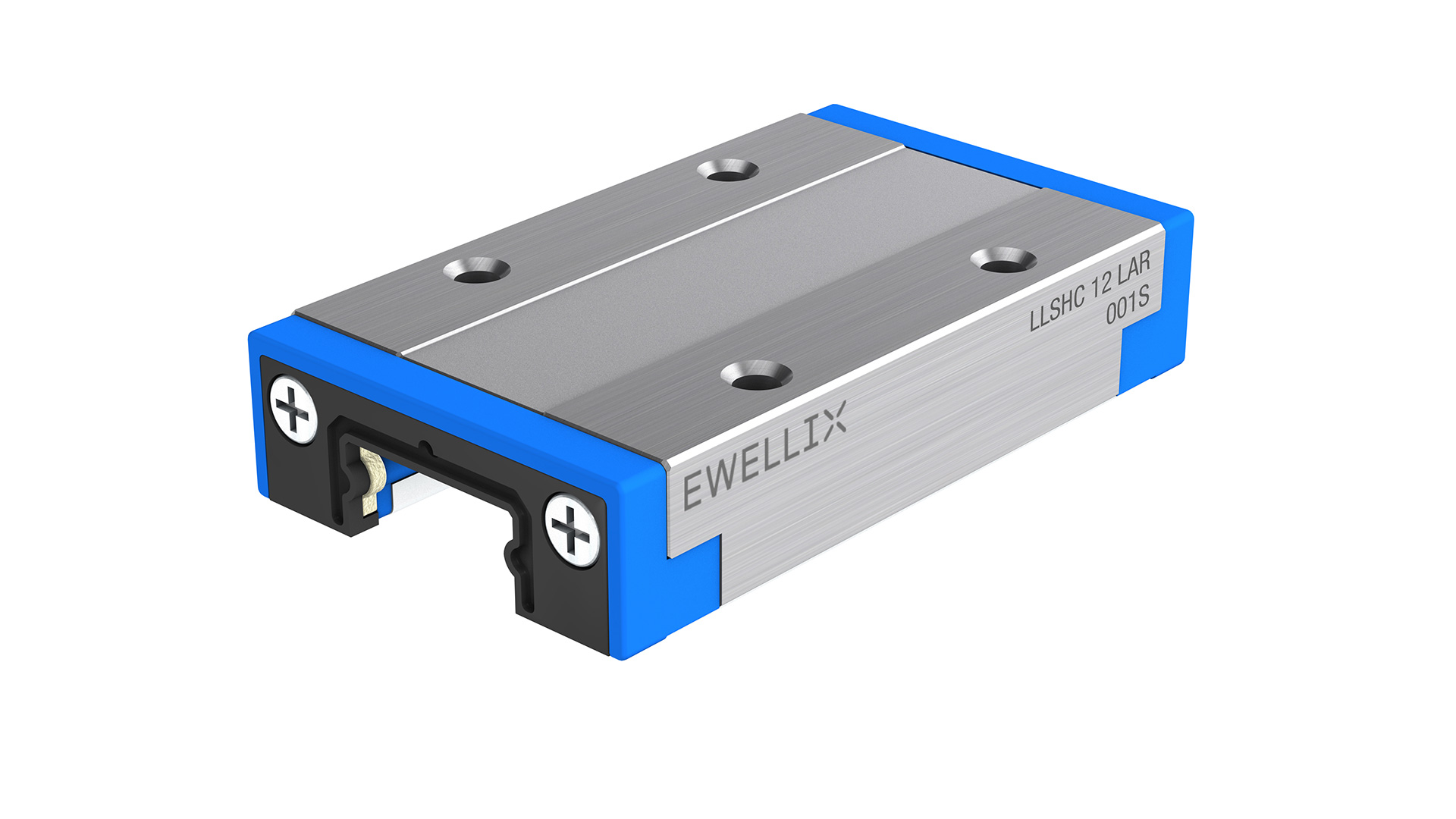

      LLSHC..TA

      LLSHC..TA

      Standard carriage in standard length shielded

      LLSHC..TA R

      LLSHC..TA R

      Standard carriage in standard length sealed

      LLSHC..LA

      LLSHC..LA

      Standard carriage in extended length shielded

      LLSHC..LA R

      LLSHC..LA R

      Standard carriage in extended length sealed

      LLSWC..TA

      LLSWC..TA

      Wide carriage in standard length shielded

      LLSWC..TA R

      LLSWC..TA R

      Wide carriage in standard length sealed

      LLSWC..LA

      LLSWC..LA

      Wide carriage in extended length shielded

      LLSWC..LA R

      LLSWC..LA R

      Wide carriage in extended length sealed

      LLSHR..

      LLSHR..

      Standard rail with two reference sides

      LLSWR..

      LLSWR..

      Wide rail with two reference sides

      LLSWR 15

      LLSWR 15

      Wide rail size 15 with two reference sides

      The newly developed Ewellix Zero Rail Concept (ZRC) offers flexibility and availability. Within the ZR-Concept, any carriage can be mounted together with the rail of the same size. Spare parts can be handled much quicker and due to standardization, delivery times are shorter in comparison to system configurations. Zero Rail Concept carriages and rails are delivered separately. The ZRC offer is standardized for precision class P5 (Standard precision) together with preload class T0 (Light clearance) and T1 (Light preload). Any carriage or rail from this range must be ordered with the suffix ZRC in the ordering key.
      For product orders, please refer to our catalogue pages where the ordering keys are indicated. Please do not use the ordering keys generated here as they may be incomplete.
